Lotus Europa Sp (M 06) Rc

Scale: unknown

Shipped from Ontario Canada

Added: 2023-02-17

SKU: GRA-TAM 58698

58698">

Item No:58698

All Electric R/C Car Series No.698

LOTUS EUROPA SPECIAL (M-06 CHASSIS)

Length: 390mm. Image shows painted and assembled kit.

A Special One
The Lotus Europa debuted in 1966, showcasing what was then a revolutionary midship layout, with a lightweight FRP body, and making a global splash thanks in part to its top-class cornering. In 1972, perhaps the finest model in the series was released - the Europa Special with 126hp, 1.6-liter inline-4 engine, optional 5-speed transmission and aluminum wheels. This R/C model assembly kit recreates the Europa Special developed by legendary Lotus founder Colin Chapman. A polycarbonate body captures the sharp, low-slung form in style, with separate parts for light cases, side mirrors and rear wing. Stickers are included for decoration of the model, including depiction of stylish gold pinstripe details.

Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and has a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses dish design wheels, equipped with 60D radial tires at the front and 60D super radial (hard) tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response.

Specifications
Length: 390mm, width: 176mm, height: 114mm Wheelbase: 225mm Tread (front/rear): 138mm Rear-motor, rear-wheel drive 3-bevel differential gear 3-piece steering tie-rod 4-wheel independent double wishbone suspension Front/rear friction dampers Gear ratio = 5.8:1 (using kit-standard 20T pinion) Tire width/diameter (front/rear): 25mm/59mm Type 540 motor Requires an Electronic Speed Controller (sold separately)

Separately Required Items
2-Channel R/C System w/ESC R6/AA/UM3 batteries for transmitter Battery pack & charger

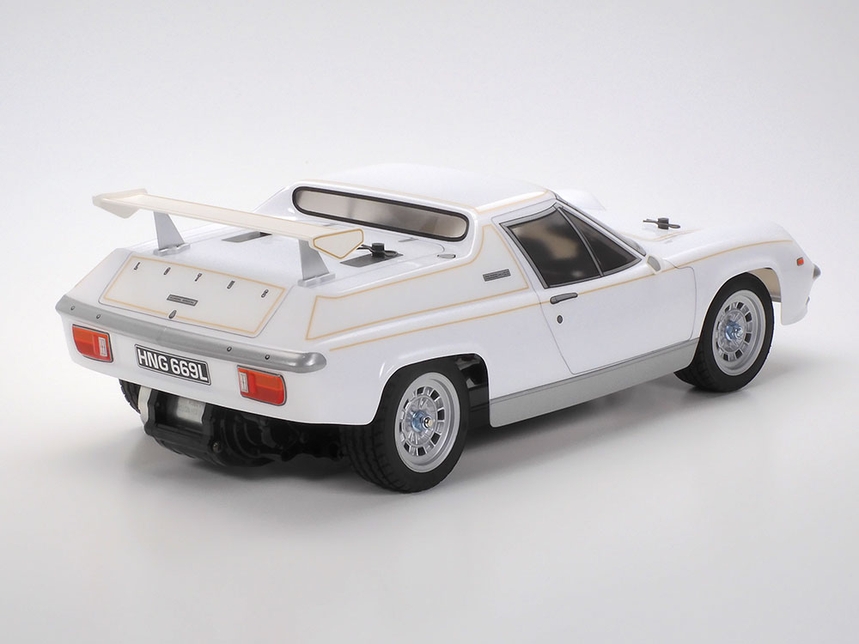

The distinctive, low-profile Europa Special form is captured in style by a lightweight polycarbonate body.

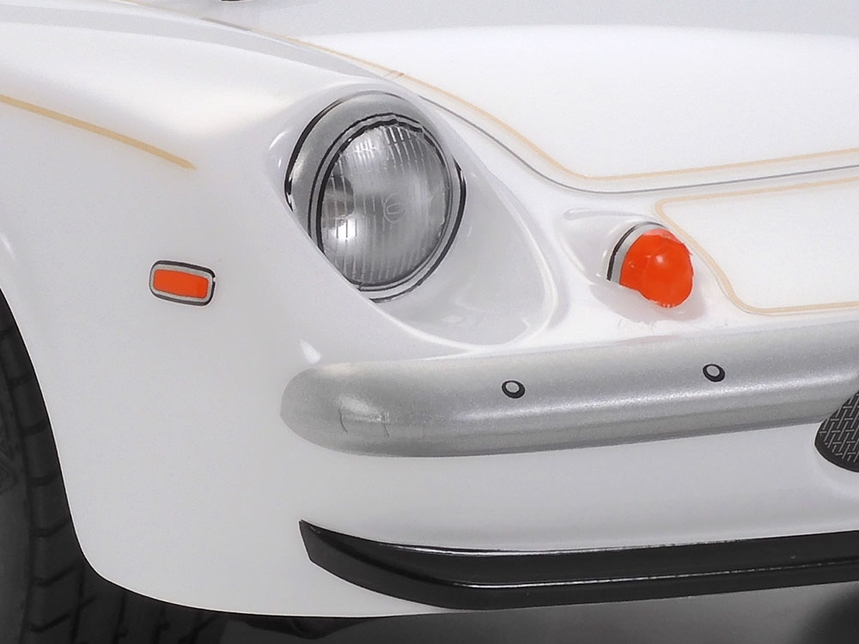

Separate parts are included for headlight cases; they are compatible with separately sold LEDs.

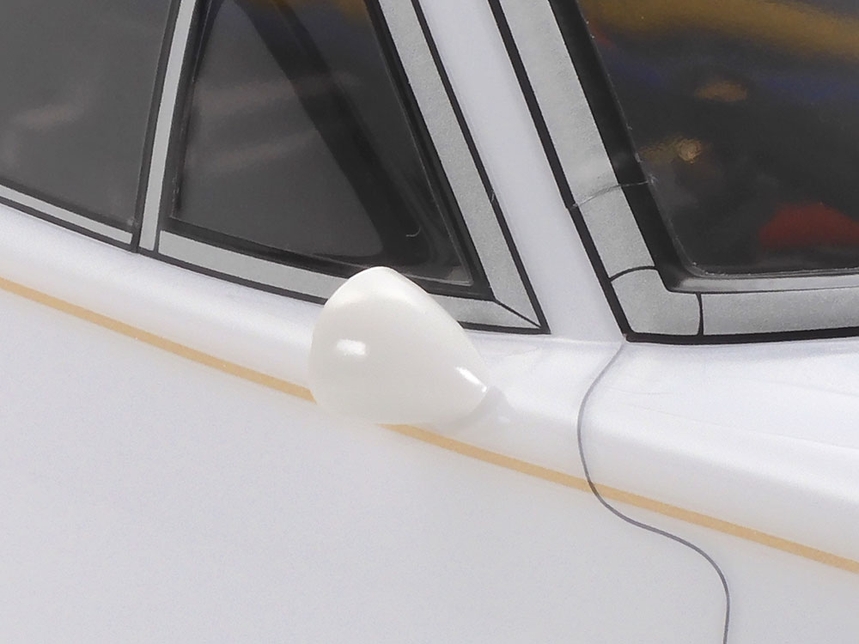

Dedicated, separately molded plastic depictions of the minimalistic side mirrors add further realism.

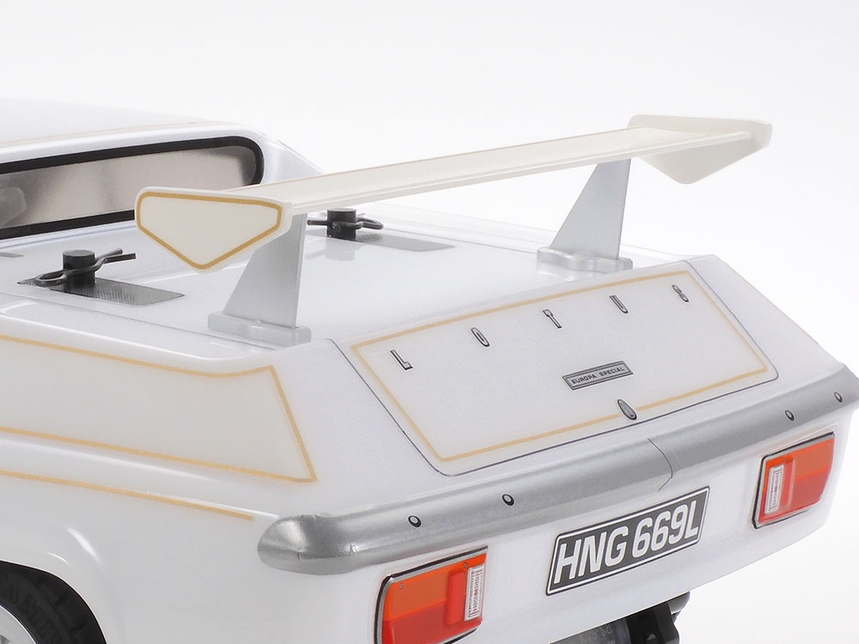

A depiction of an optional rear wing is also included. Stickers are provided for gold pinstripes.

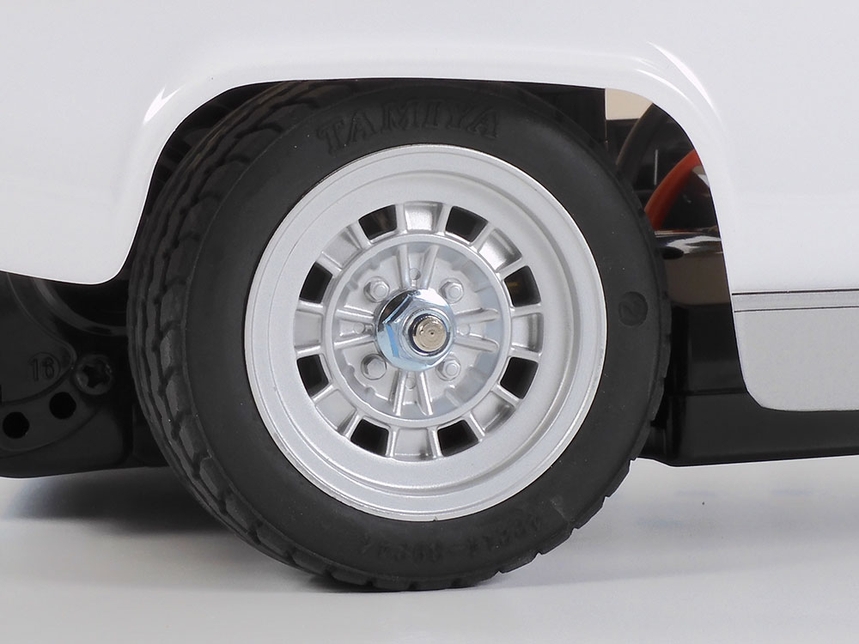

Dish type wheels are perfect for this classic sports car; treaded semi-pneumatic tires have inserts.

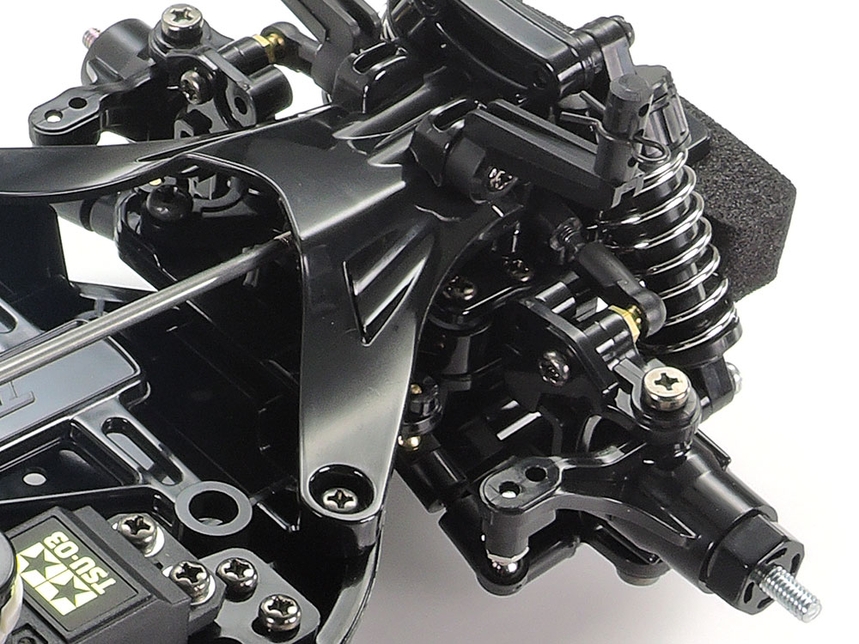

The M-06 chassis' three-piece steering linkage ensures you have great control and direct steering feel.

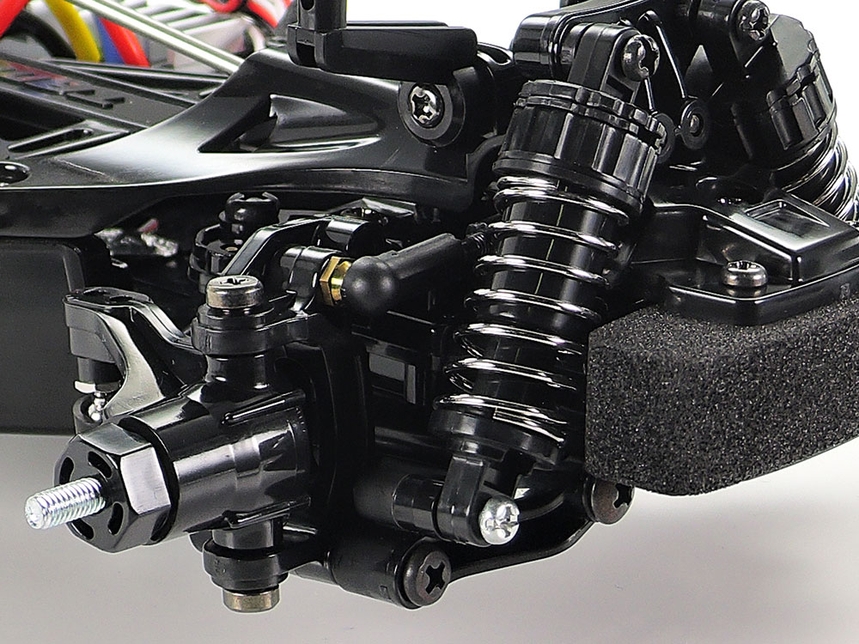

A close-up on the independent double wishbone front suspension setup, which employs friction dampers.

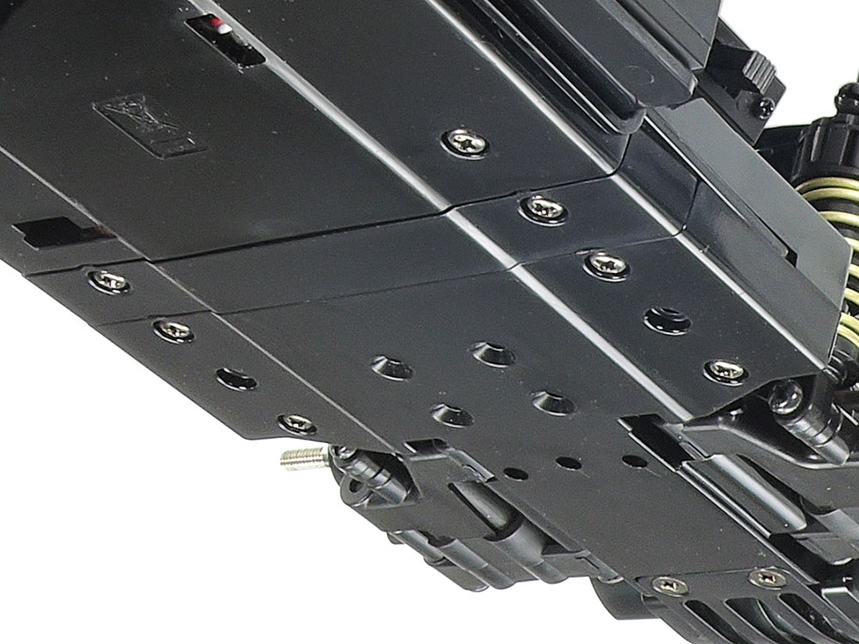

With rear re-assembly, 210mm, 225mm and 239mm wheelbases are possible. This model uses 225mm.

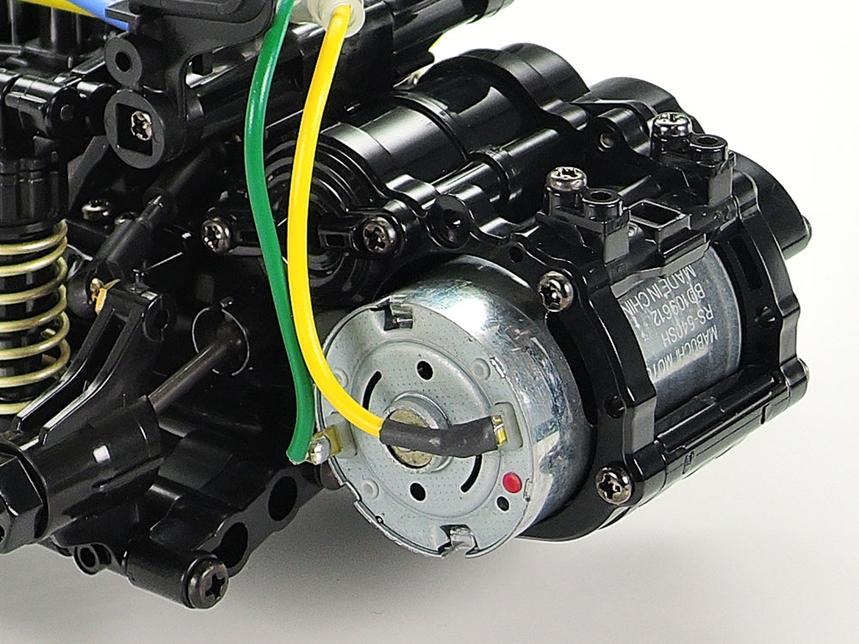

The rear-mounted motor, rear-wheel drive setup provides the model with excellent traction at the rear.

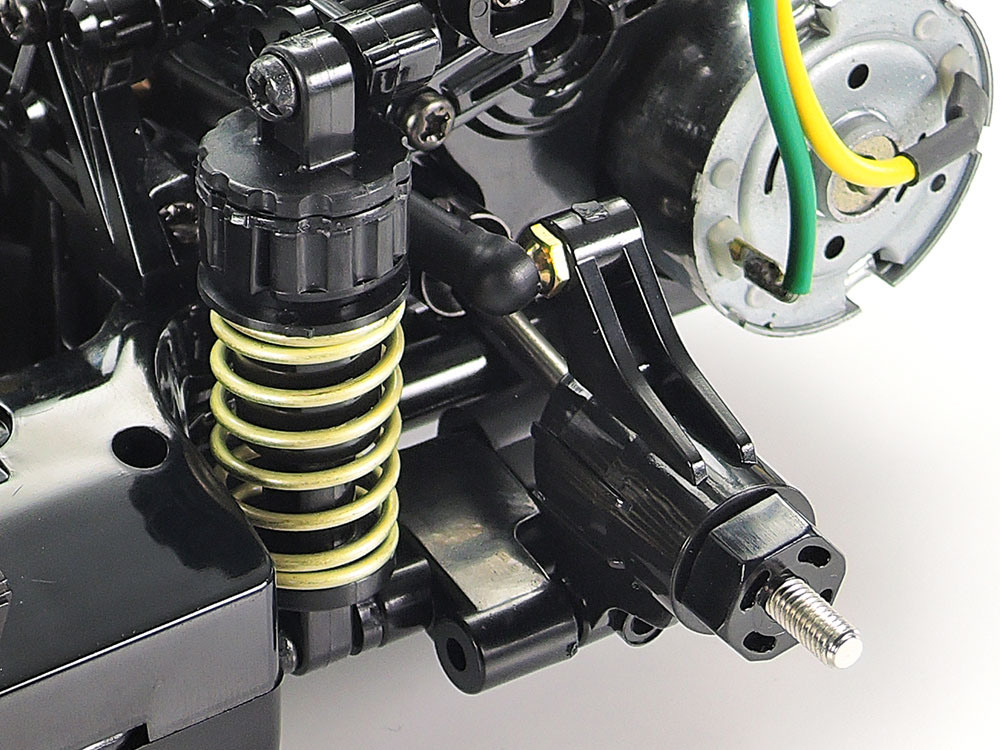

A close-up on the rear suspension. Use separately sold pinion gears to achieve different gear ratios.
