Scale: unknown
$494.95 each
By: Tamiya
Shipped from Ontario Canada
Added: 2024-07-09
SKU: GRA-TAM 47497
Category: Model Kits - RC Models

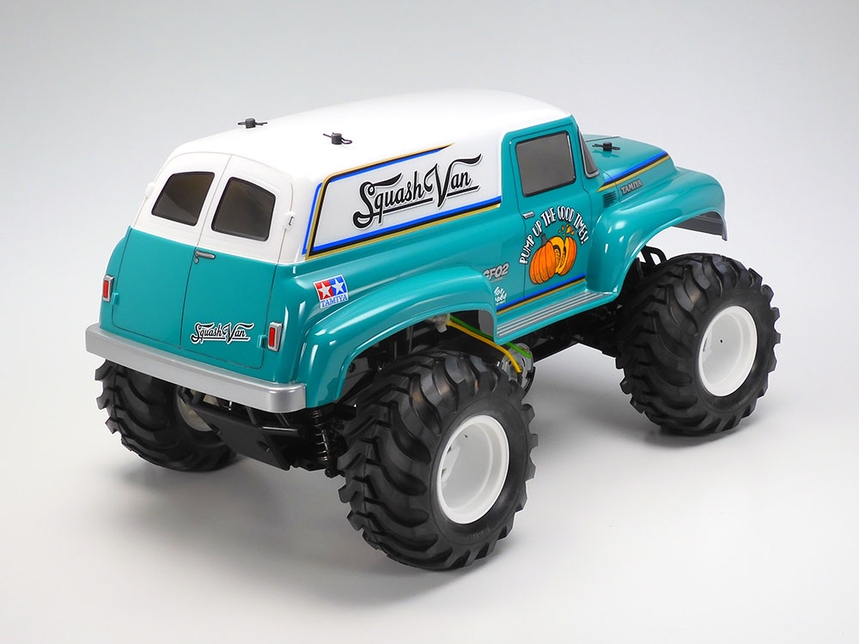

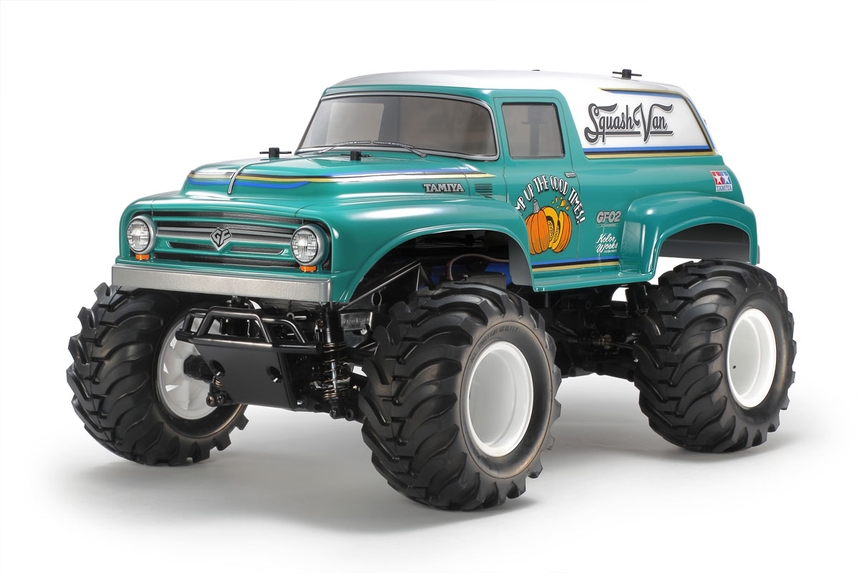

The Squash Van is a fun-to-drive big tire vehicle that is inspired by 1950’s American panel vans. The polycarbonate body shell sits on top of the new gear-driven 4WD GF-02 chassis, which is a variant of the comical GF-01. While the GF-01 chassis features a comical design, the GF- 02 chassis employs a more realistic wheelbase and a frame with ladder and pipe motifs.

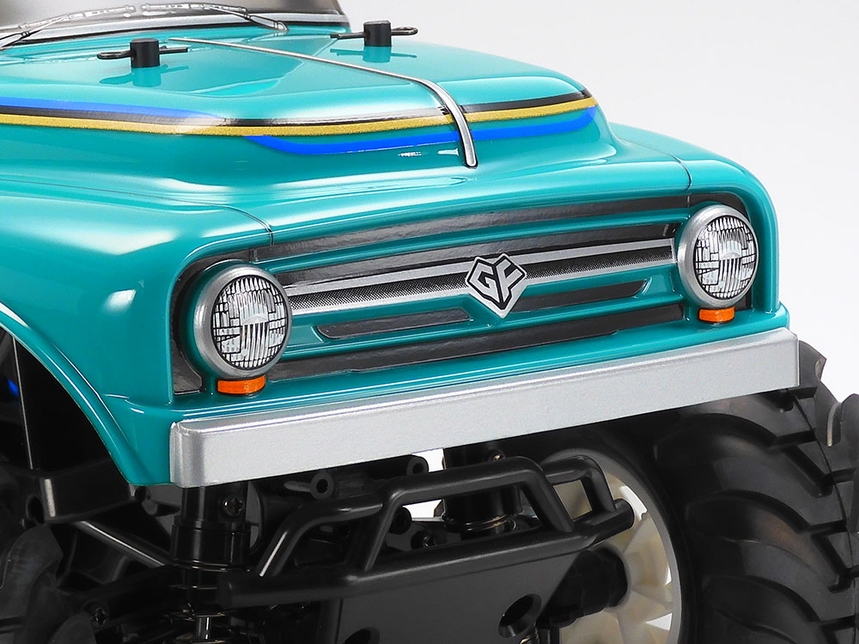

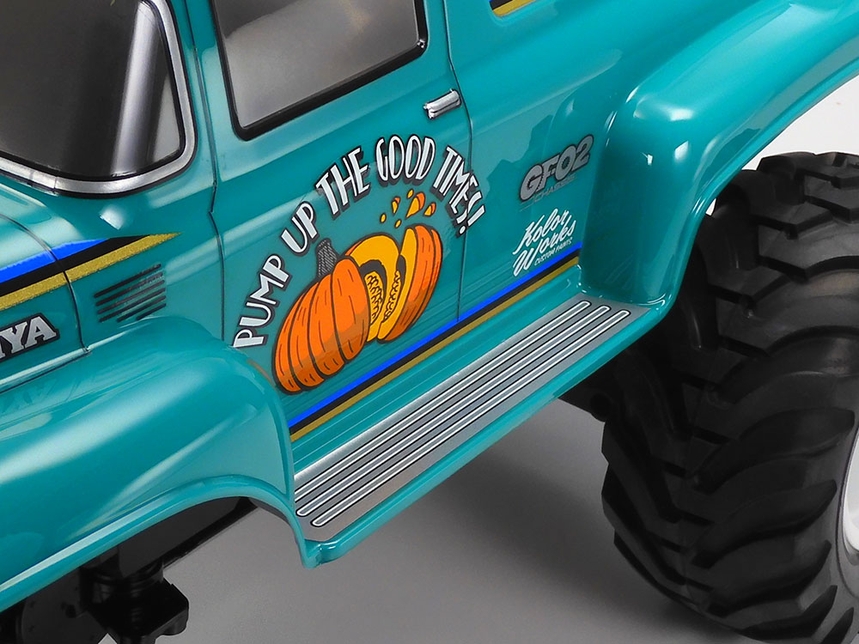

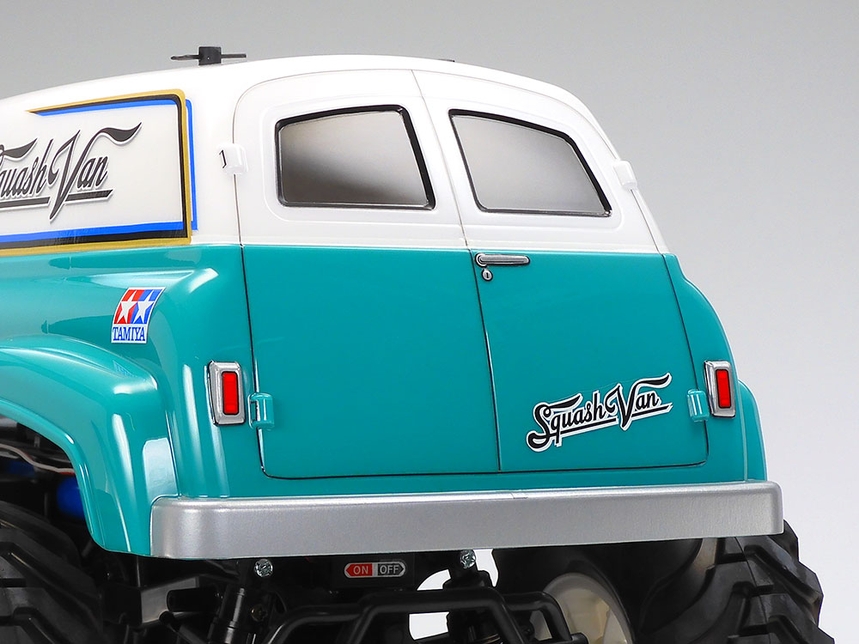

This Limited-Edition version of the kit includes the body which is pre-painted in Cobalt Green (PS-54) with White (PS-1) roof and Smoke (PS-31) windows, pre-cut wheel arches and pre-made body mount holes, which is great for not only beginners but also R/C veterans.

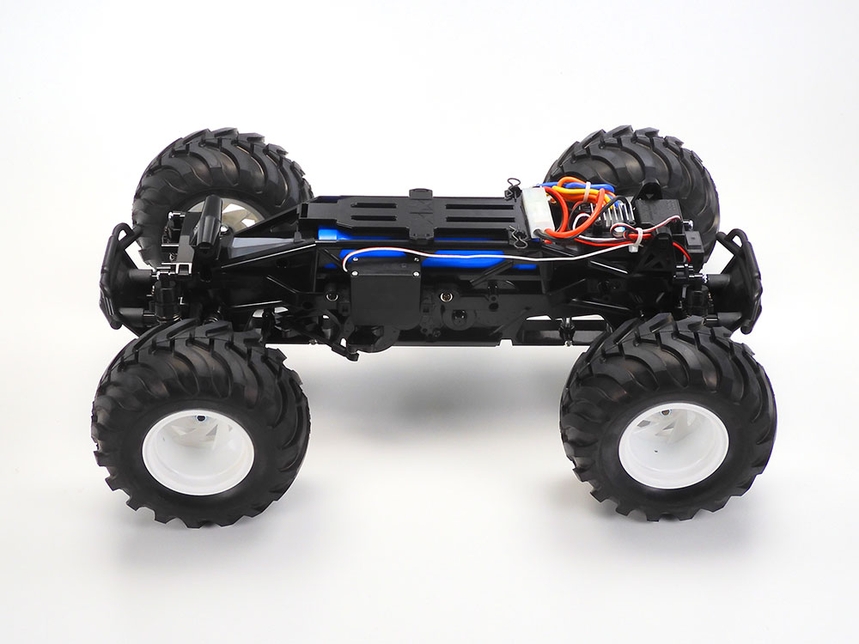

GF-02 chassis

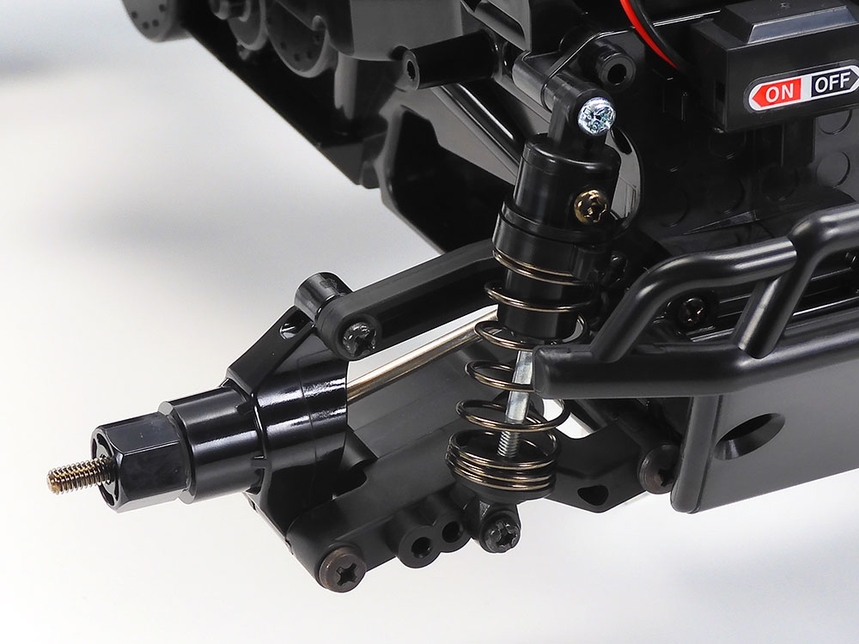

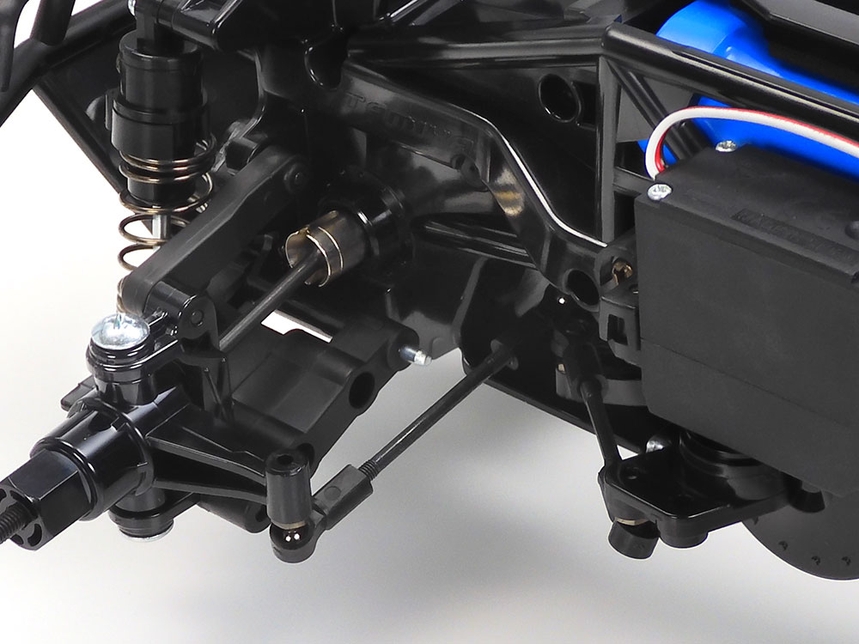

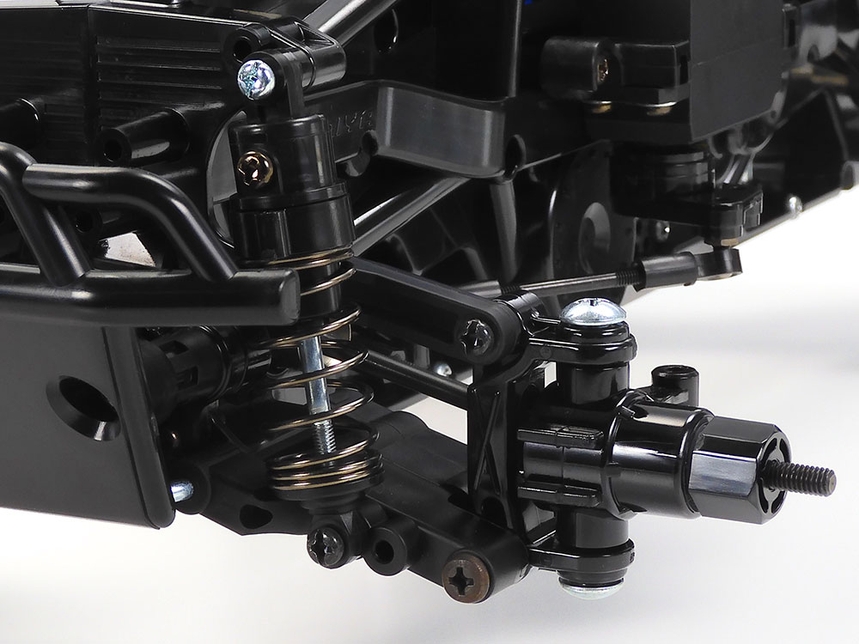

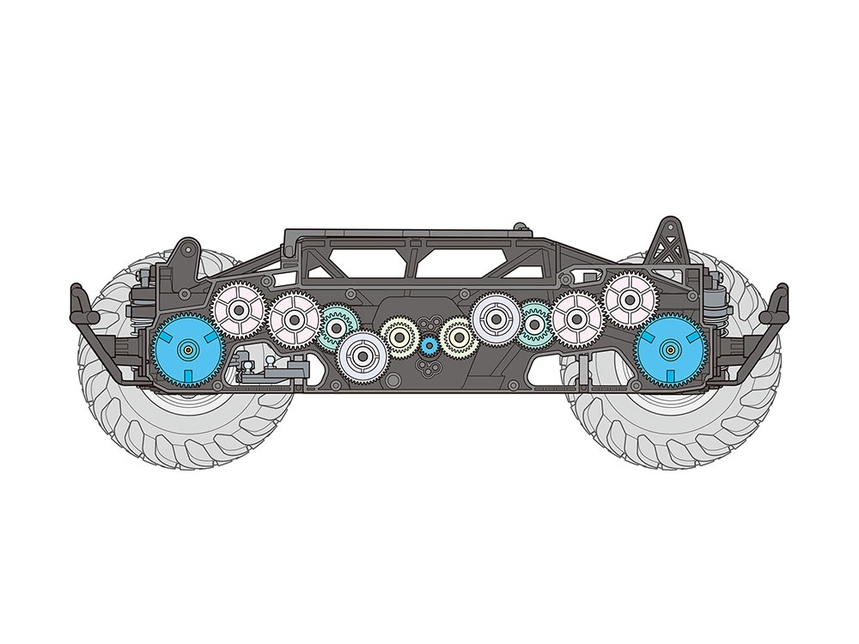

The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.
• 1/10 R/C assembly kit. Wheelbase: 267 mm
• Front/Rear tread: F: 223mm / R: 221mm.

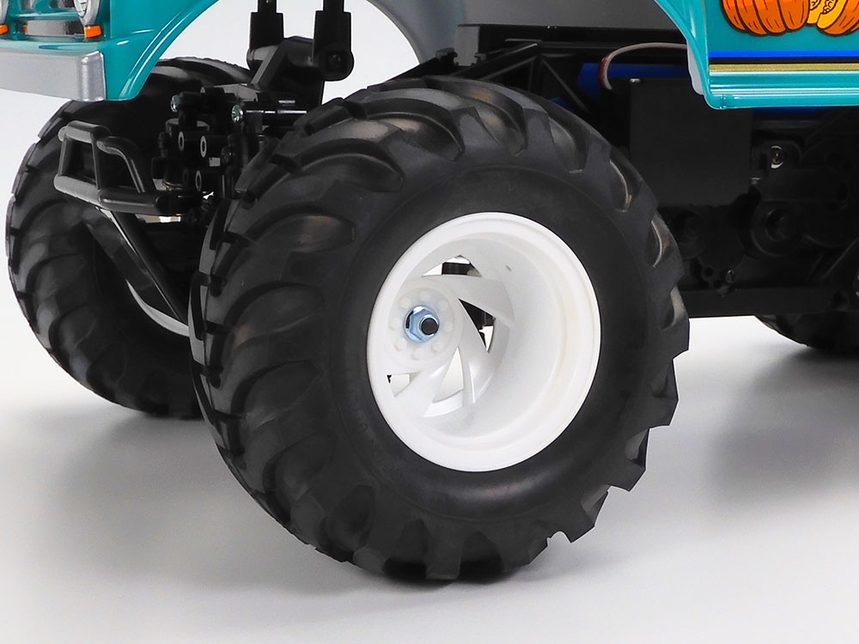

• V-Block pattern Block Tires 122.8mm diameter.
• Gear Ratios: 18T (18.03:1), 20T (16.23:1), 17T (19.09:1) Kit is supplied with 18 tooth pinion gear.
• 4WS-four-wheel steering compatible with separately sold third-party 4WS function radio.
• Body post position same as long wheelbase CC-02 chassis.
• Includes 540 brushed type motor and ESC.
• Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger.
• The body requires cutting out, application of stickers and other work.
